Documentation Screenshot Yaml¶
Example YAML configurations to replicate each screenshot shown below. See my personal configuration to see how I use this card: my dashboard yaml
Entity Icons¶
# Most entities are not configured since it's pulling default entities and sensors by convention.
- type: custom:layout-card
...
cards:
- type: custom:button-card
template: card_title
name: Rooms
#################
# LIVING ROOM
#################
- type: custom:room-summary-card
area: living_room
entities:
- switch.sconce
- climate.living_room
#################
# DINING ROOM
#################
- type: custom:room-summary-card
area: dining_room
#################
# GARAGE
#################
- type: custom:room-summary-card
area: garage
thresholds:
temperature:
- value: 90
entities:
- entity_id: binary_sensor.garage_door_tilt_window_door_is_open
tap_action:
action: call-service
service: switch.toggle
service_data:
entity_id: switch.garage_opener
- switch.garage_opener_plug
Problem Detection¶
Interactive Feature: Click the problem indicator (numbered badge) to open a dialog showing all problem entities with their details. Each entity can be clicked to open its more-info dialog.
#################
# LIVING ROOM
#################
- type: custom:room-summary-card
area: living_room
entities:
- switch.sconce
- climate.living_room
#################
# DINING ROOM
#################
- type: custom:room-summary-card
area: dining_room
Occupancy Detection¶
type: custom:room-summary-card
area: living_room
occupancy:
entities:
- binary_sensor.living_room_motion
- binary_sensor.living_room_occupancy
Sensor Layouts¶
Default Layout¶
# headings
- type: heading
heading_style: title
heading: Sensor Style Default
grid_options:
columns: 9
rows: 1
- type: heading
heading_style: title
heading: Sensor Style Stacked
grid_options:
columns: 6
rows: 1
- type: heading
heading_style: title
heading: Sensor Style Bottom
grid_options:
columns: 6
rows: 1
# cards
- type: custom:room-summary-card
area: attic
grid_options:
columns: 6
rows: 3
- type: custom:room-summary-card
area: attic
sensor_layout: stacked
grid_options:
columns: 6
rows: 3
- type: custom:room-summary-card
area: attic
sensor_layout: bottom
grid_options:
columns: 9
rows: 3
Background Images¶
Area Picture (Automatic)¶
type: custom:room-summary-card
area: living_room
# Uses area picture automatically - no configuration needed
Entity Picture¶
Custom Background¶
type: custom:room-summary-card
area: living_room
background:
image: /local/images/living-room.jpg
opacity: 30
RGB Color Support¶
type: custom:room-summary-card
area: living_room
entities:
- entity_id: light.living_room_rgb_strip
icon: mdi:led-strip-variant
# RGB colors are automatically used from entity's rgb_color attribute
# No additional configuration needed
Custom Icon Colors¶
# In customize.yaml
customize:
media_player.netflix:
icon_color: '#E50914' # Netflix red
icon: mdi:netflix
sensor.plex:
icon_color: '#E5A00D' # Plex gold
icon: mdi:plex
# Card configuration
type: custom:room-summary-card
area: living_room
entities:
- media_player.netflix
- sensor.plex

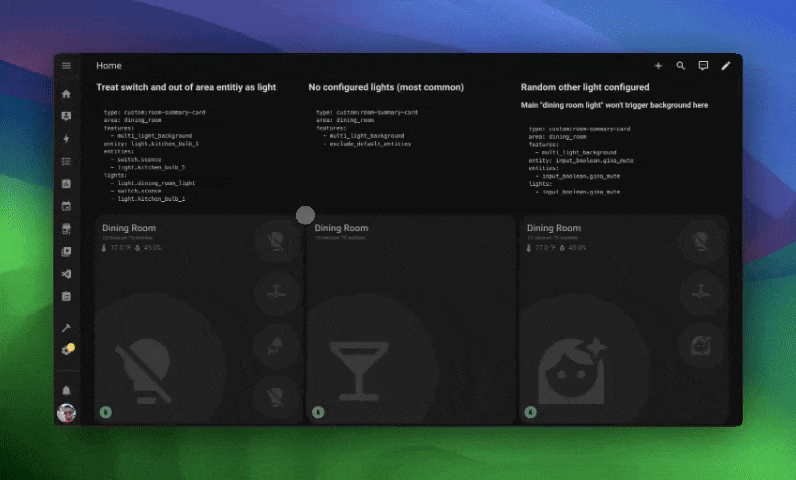

Multi-Light Background¶
The above demonstration shows three different multi-light configurations:
# Card 1: Mixed entity types with manual light specification
- type: custom:room-summary-card
area: dining_room
features:
- multi_light_background
entity: light.kitchen_bulb_1
entities:
- switch.sconce
- light.kitchen_bulb_1
lights:
- light.dining_room_light
- switch.sconce
- light.kitchen_bulb_1
# Card 2: Automatic discovery with default entities excluded
- type: custom:room-summary-card
area: dining_room
features:
- multi_light_background
- exclude_default_entities
# Card 3: Custom entity as light source
- type: custom:room-summary-card
area: dining_room
features:
- multi_light_background
entity: input_boolean.gina_mute
entities:
- input_boolean.gina_mute
lights:
- input_boolean.gina_mute
Custom Styling¶
- type: heading
icon: ''
heading: custom styles
heading_style: title
- type: custom:room-summary-card
area: server_closet_poat_hole
area_name: Weee
navigate: /foo-bar
grid_options:
columns: 9
rows: 4
styles:
card:
background: 'linear-gradient(135deg, #667eea 0%, #764ba2 100%)'
border: '2px solid #00ff41'
border-radius: 10px
box-shadow: 0 0 20px rgba(0, 255, 65, 0.3)
title:
color: '#00ff41'
font-size: 2.5em
font-weight: bold
text-shadow: 0 0 10px rgba(0, 255, 65, 0.8)
text-transform: uppercase
stats:
color: '#00ff41'
font-family: monospace
background: rgba(0, 0, 0, 0.5)
padding: 8px
border-radius: 5px
sensors:
color: '#00ff41'
font-family: monospace
'--user-icon-size': 20px
- type: custom:room-summary-card
area: server_closet_poat_seedbox
area_name: Retro
navigate: /foo-bar
grid_options:
columns: 9
rows: 4
styles:
card:
background: '#000000'
border: '2px solid #ff00ff'
border-radius: 0
box-shadow: >-
0 0 30px rgba(255, 0, 255, 0.5), inset 0 0 30px rgba(255, 0,
255, 0.1)
title:
color: '#ff00ff'
font-size: 2.2em
font-family: monospace
text-shadow: '0 0 10px #ff00ff, 0 0 20px #ff00ff'
text-transform: uppercase
stats:
color: '#00ffff'
font-family: monospace
text-shadow: '0 0 5px #00ffff'
sensors:
color: '#ffff00'
font-family: monospace
text-shadow: '0 0 5px #ffff00'
'--user-icon-size': 18px

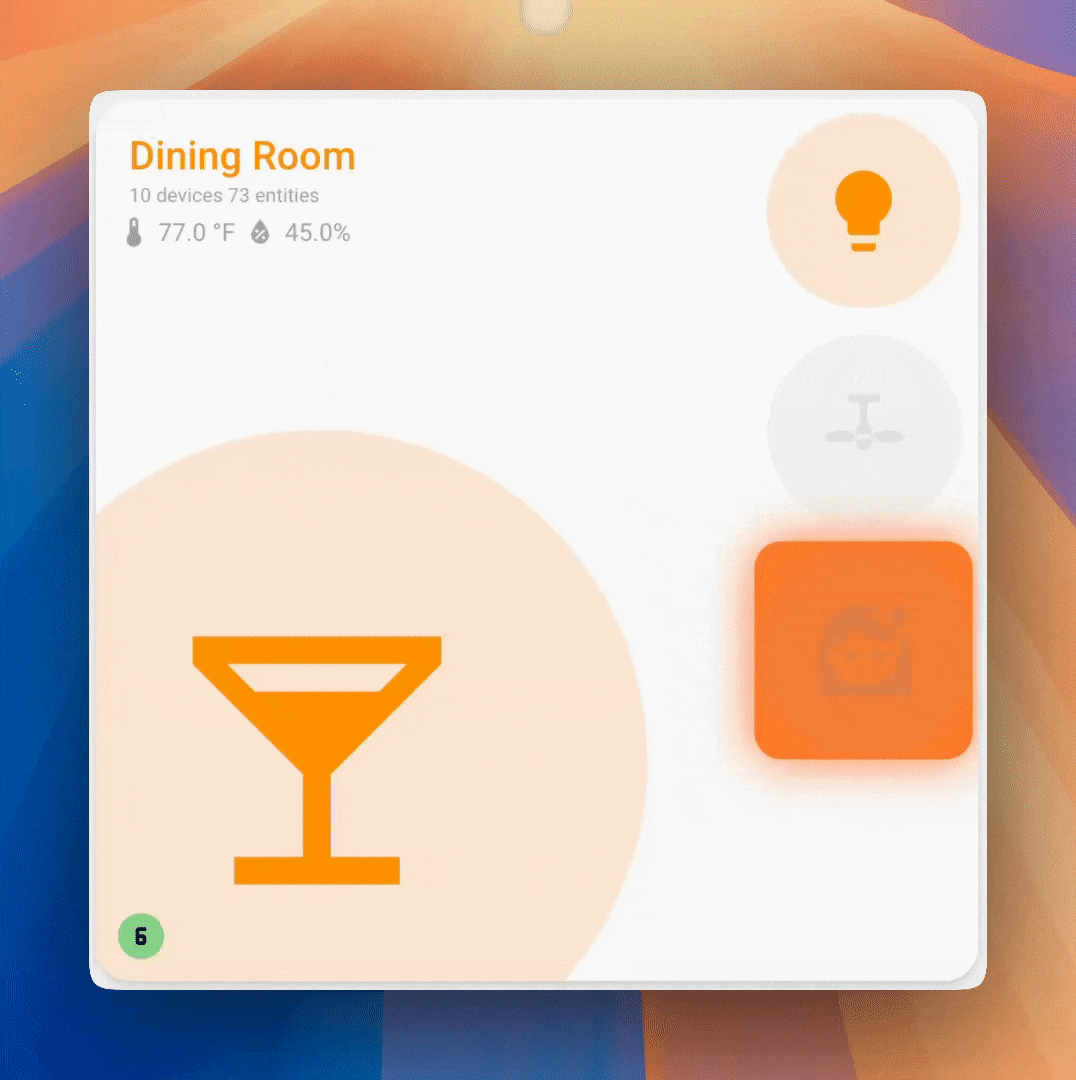

State based CSS styling for entities¶
type: custom:room-summary-card
area: dining_room
entities:
- entity_id: input_boolean.gina_mute
states:
- state: 'on'
icon_color: '#FFD700'
styles:
keyframes: |-
print {
0%, 100% { clip-path: polygon(0 0, 0 51%, 20% 51%, 51% 33%, 81% 53%, 100% 53%, 100% 0); }
10% { clip-path: polygon(0 0, 0 100%, 49% 100%, 85% 83%, 49% 98%, 50% 89%, 51% 82%, 46% 79%, 36% 73%, 17% 82%, 20% 50%, 51% 33%, 81% 52%, 100% 52%, 100% 0); }
20% { clip-path: polygon(0 0, 0 100%, 100% 100%, 85% 83%, 66% 73%, 56% 79%, 51% 83%, 46% 79%, 36% 73%, 17% 82%, 20% 50%, 51% 33%, 81% 52%, 100% 52%, 100% 0); }
30% { clip-path: polygon(0 0, 0 100%, 100% 100%, 85% 83%, 66% 73%, 54% 69%, 50% 61%, 45% 69%, 36% 73%, 17% 82%, 20% 50%, 51% 33%, 81% 52%, 100% 52%, 100% 0); }
40% { clip-path: polygon(0 0, 0 100%, 100% 100%, 85% 83%, 66% 73%, 54% 69%, 50% 61%, 45% 69%, 34% 63%, 25% 54%, 20% 50%, 51% 33%, 81% 52%, 100% 52%, 100% 0); }
50% { clip-path: polygon(0 0, 0 100%, 100% 100%, 76% 51%, 66% 63%, 54% 69%, 50% 61%, 45% 69%, 34% 63%, 25% 54%, 20% 50%, 51% 33%, 81% 52%, 100% 52%, 100% 0); }
60% { clip-path: polygon(0 0, 0 100%, 100% 100%, 76% 51%, 66% 63%, 55% 69%, 50% 61%, 39% 55%, 32% 55%, 25% 54%, 20% 50%, 51% 33%, 81% 52%, 100% 52%, 100% 0); }
70% { clip-path: polygon(0 0, 0 100%, 100% 100%, 76% 51%, 68% 53%, 60% 55%, 50% 61%, 39% 55%, 32% 55%, 25% 54%, 20% 50%, 51% 33%, 81% 52%, 100% 52%, 100% 0); }
80% { clip-path: polygon(0 0, 0 100%, 100% 100%, 76% 51%, 68% 53%, 60% 55%, 50% 61%, 50% 50%, 51% 37%, 31% 44%, 30% 35%, 51% 33%, 81% 52%, 100% 52%, 100% 0); }
90% { clip-path: polygon(0 0, 0 100%, 100% 100%, 77% 51%, 67% 42%, 64% 34%, 56% 34%, 50% 36%, 39% 40%, 31% 44%, 30% 35%, 41% 33%, 85% 53%, 100% 52%, 100% 0); }
}
animation: print 2s infinite
- state: 'off'
icon_color: '#888888'
styles:
animation: breathing 3s ease-in-out infinite;
keyframes: |-
breathing {
0%, 100% {
transform: scale(1);
background-color: #ff5722; /* Start with orange */
box-shadow: 0 0 20px #ff5722;
}
50% {
transform: scale(1.5); /* Grows larger */
background-color: #ffeb3b; /* Transition to yellow */
box-shadow: 0 0 40px #ffeb3b; /* Brighter glow */
border-radius: 50%;
}
}

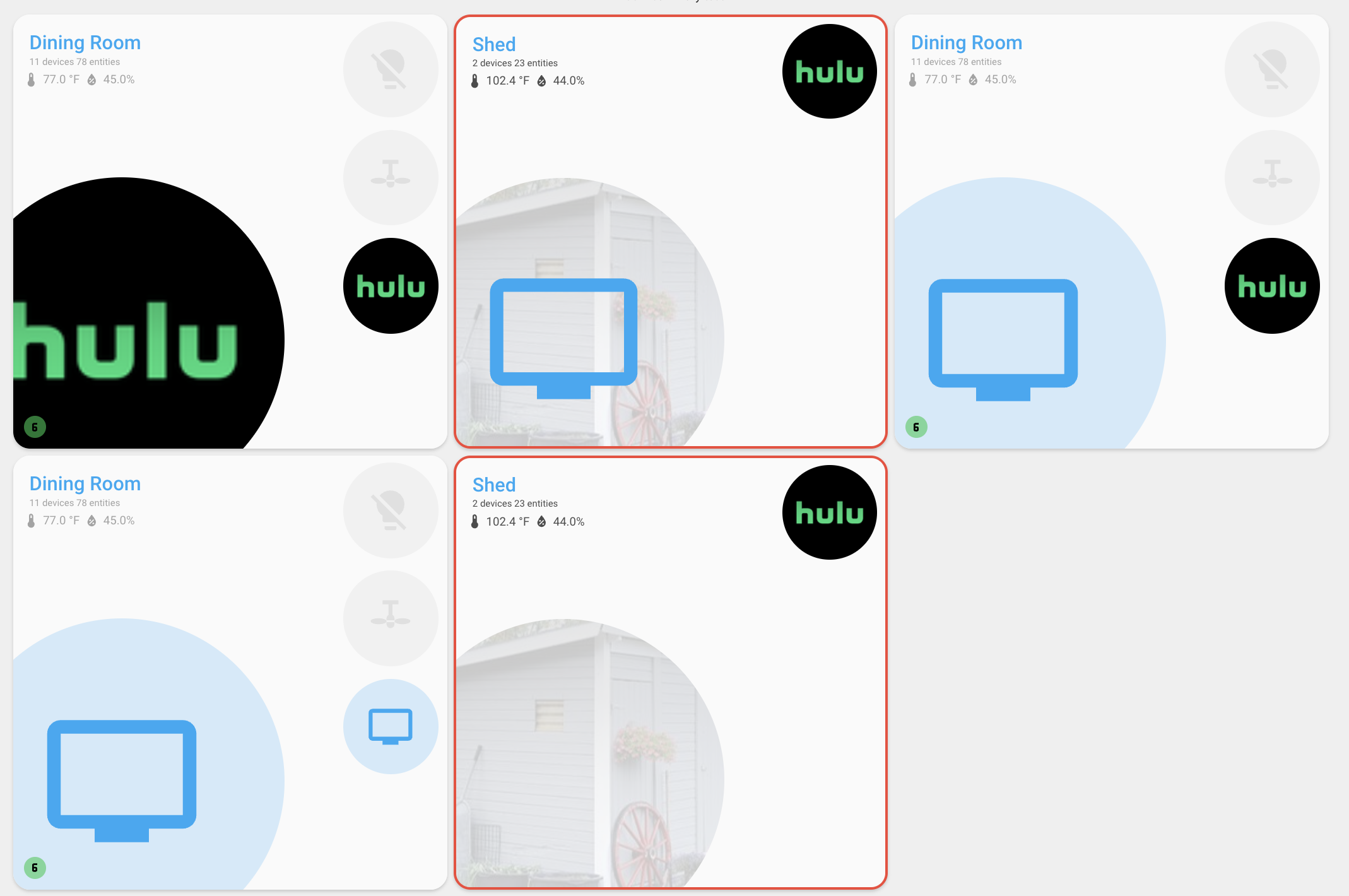

Entity Picture Attributes¶
type: grid
cards:
- type: custom:room-summary-card
area: dining_room
entity: media_player.living_room_tv
entities:
- entity_id: media_player.living_room_tv
- type: custom:room-summary-card
area: shed
entity:
entity_id: media_player.living_room_tv
features:
- use_entity_icon
entities:
- entity_id: media_player.living_room_tv
background:
options:
- icon_background
- type: custom:room-summary-card
area: dining_room
entity:
entity_id: media_player.living_room_tv
features:
- use_entity_icon
entities:
- entity_id: media_player.living_room_tv
- type: custom:room-summary-card
area: dining_room
entity:
entity_id: media_player.living_room_tv
features:
- use_entity_icon
entities:
- entity_id: media_player.living_room_tv
features:
- use_entity_icon
- type: custom:room-summary-card
area: shed
entity:
entity_id: media_player.living_room_tv
features:
- use_entity_icon
entities:
- entity_id: media_player.living_room_tv
background:
options:
- icon_background
- hide_icon_only
column_span: 3
