Custom Styles Configuration

The Room Summary Card now supports custom CSS styles for different areas of the card, allowing you to completely customize the appearance to match your theme or personal preferences.

Overview

Custom styles can be applied to the main areas of the card:

• card - The entire card container and background
• entities - The entity container
• entity_icon - Individual entity icons (global styles for all entities)
• title - The room name/title text
• stats - The area statistics (device/entity counts)
• sensors - The sensor display area and sensor styling

Note: In addition to global entity_icon styles, you can also apply styles directly to individual entities using the styles property in entity configuration. Entity-level styles override global entity_icon styles, and threshold/state styles override entity-level styles.

Basic Usage

type: custom:room-summary-card
area: living_room
styles:
  title:
    color: white
    font-size: 2em
  card:
    background: 'linear-gradient(45deg, #ff6b6b, #4ecdc4)'
  entities:
    grid-template-rows: 1fr 1fr !important;
    grid-template-columns: 1fr 1fr !important;

Style Areas

Card Styles

Control the overall card appearance:

styles:
  card:
    background: none # Remove default background
    border: '2px solid #ff6b6b' # Add border
    border-radius: 15px # Rounded corners
    aspect-ratio: '16/9' # Change card proportions
    box-shadow: '0 4px 8px rgba(0,0,0,0.2)'

Customizing Grid Layout

You can customize the main grid layout using CSS variables:

styles:
  card:
    '--user-grid-template-areas': "'i e'" # Horizontal layout: info left, entities right
    '--user-grid-template-columns': '1fr 1.2fr' # Column sizes
    '--user-grid-template-rows': '1fr' # Single row
    '--user-grid-aspect-ratio': '16/9' # Change card aspect ratio

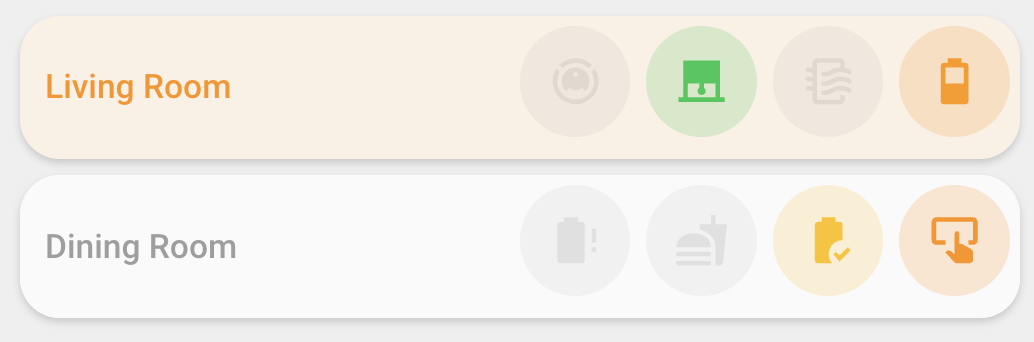

Horizontal Layout Example:

type: custom:room-summary-card
area: living_room
entities:
  - vacuum.joey_essex
  - cover.living_room_blinds
  - input_boolean.air_filters_need_changed
  - sensor.living_room_blinds_battery
styles:
  entities:
    grid-template-columns: 1fr 1fr 1fr 1fr !important
    grid-template-rows: 1fr  !important
    align-items: normal !important
  card:
    '--user-grid-template-areas': "'i e'"
    '--user-grid-template-columns': 1fr 1fr
    '--user-grid-template-rows': 1fr
    '--user-grid-aspect-ratio': 7/1
  title:
    margin-top: 14%
features:
  - exclude_default_entities
  - hide_area_stats
  - hide_room_icon

Making the Card Rectangular and Shape to Content:

To make the card rectangular and size to its content instead of being square:

styles:
  card:
    '--user-grid-template-areas': "'i e'"
    '--user-grid-template-columns': '1fr 1.2fr'
    '--user-grid-template-rows': '1fr'
    '--user-grid-aspect-ratio': 'auto' # Remove aspect ratio constraint, size to content
    # Or use a rectangular aspect ratio:
    # '--user-grid-aspect-ratio': '16/9'  # Wide rectangular
    # '--user-grid-aspect-ratio': '2/1'   # Very wide
    # '--user-grid-aspect-ratio': '3/2'   # Slightly wide

Common Aspect Ratio Values:

• 'auto' or 'none' - Remove aspect ratio, size to content
• '16/9' - Wide rectangular (common for horizontal layouts)
• '2/1' - Very wide rectangular
• '3/2' - Slightly wide rectangular
• '1/1' - Square (default)

Note: For grid-template-areas, use single quotes around the entire value, and each row should be separated by spaces. For example:

• Single row: "'i e'" (info left, entities right)
• Default 4x4 grid: "'i i i e' 'i i i e' 'r r . e' 'r r . e'" (info, room icon, entities)

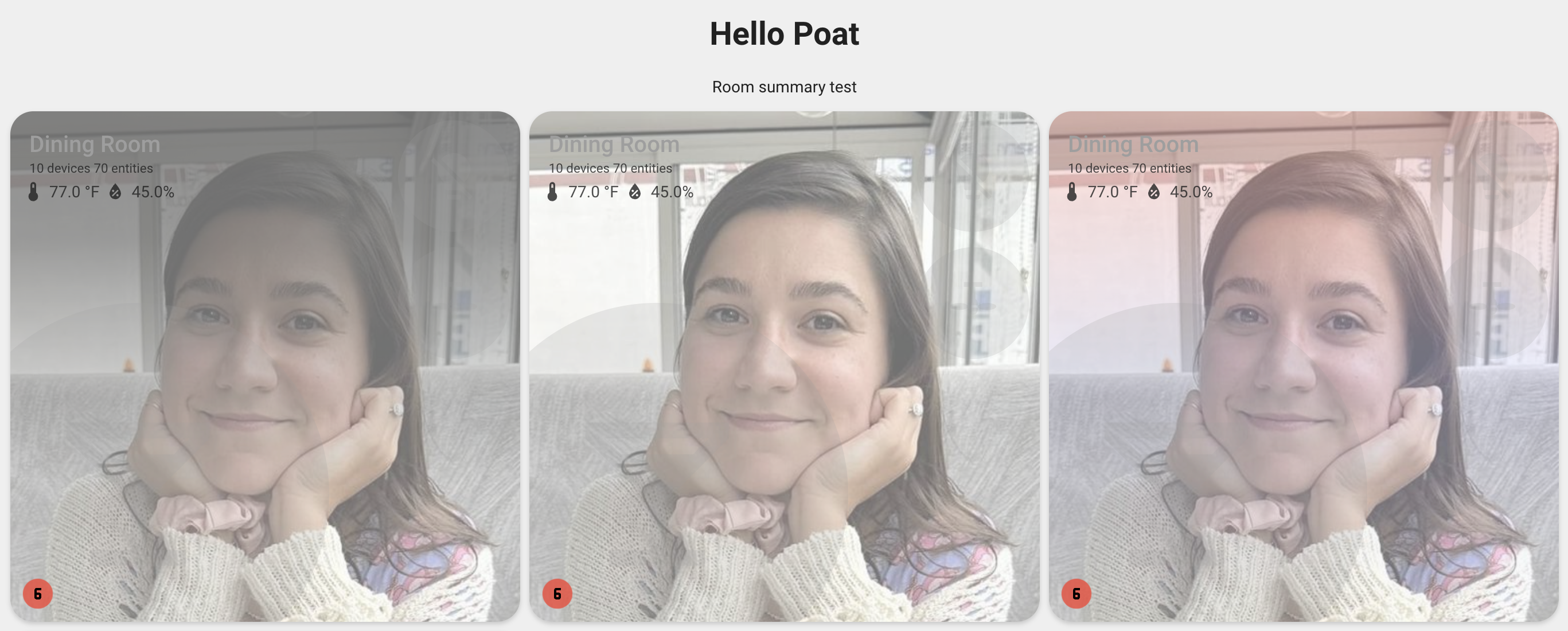

Customizing Card Background Image Overlay

When using card background images, you can customize or remove the default gradient overlay using the same --user-background-image-overlay variable:

Remove the gradient overlay:

styles:
  card:
    '--user-background-image-overlay': none

Use a custom gradient:

styles:
  card:
    '--user-background-image-overlay': 'linear-gradient(to bottom, rgba(0,0,0,0.5), rgba(0,0,0,0.2), transparent)'

Use a solid color overlay:

styles:
  card:
    '--user-background-image-overlay': 'rgba(0, 0, 0, 0.3)'

Entity Styles

Control the entity container:

styles:
  entities:
    background: red # Remove default background
    border: '2px solid #ff6b6b' # Add border
    border-radius: 15px # Rounded corners
    grid-template-rows: 1fr 1fr !important; # 2 rows
    grid-template-columns: 1fr 1fr !important; # 2 columns

Entity Icon Styles

Control individual entity icons globally:

styles:
  entity_icon:
    width: 50% # Icon size
    opacity: 0.8 # Icon opacity
    filter: 'drop-shadow(2px 2px 4px rgba(0,0,0,0.3))' # Add shadow
    transform: 'scale(1.2)' # Make icons larger

Customizing Icon Background Image Overlay

When using icon backgrounds with images, you can customize or remove the default gradient overlay:

Remove the gradient overlay:

styles:
  card:
    '--user-background-image-overlay': none

Use a custom gradient:

styles:
  card:
    '--user-background-image-overlay': 'linear-gradient(to bottom, rgba(255,0,0,0.3), rgba(0,0,255,0.1), transparent)'

Use a solid color overlay:

styles:
  card:
    '--user-background-image-overlay': 'linear-gradient(rgba(0, 0, 0, 0.2), rgba(0, 0, 0, 0.2))'

Per-Entity Styles

Apply styles directly to individual entities for per-entity customization:

entities:
  - entity_id: light.living_room
    styles:
      '--user-entity-label-display': none # Hide label for this entity
      opacity: 0.9
      transform: scale(1.1)
  - entity_id: switch.kitchen
    styles:
      border: '2px solid red'
      border-radius: '50%'

Style Priority:

1. Threshold/state styles (highest priority)
2. Entity-level styles (middle priority)
3. Global entity_icon styles (lowest priority)

Hide Icon Backgrounds

For cleaner icons without background fills:

styles:
  entity_icon:
    '--opacity-icon-fill-inactive': 0
    '--opacity-icon-fill-active': 0

This is particularly useful when using the show_entity_labels feature for a cleaner, more minimal appearance.

Title Styles

Customize the room name display:

styles:
  title:
    color: '#ffffff' # Text color
    font-size: 3em # Large title
    font-weight: bold # Bold text
    text-shadow: '2px 2px 4px rgba(0,0,0,0.5)'
    text-transform: uppercase # UPPERCASE text

Stats Styles

Style the area statistics:

styles:
  stats:
    color: yellow # Stats text color
    font-size: 1.2em # Larger stats text
    opacity: 1 # Full opacity (override theme)
    background: 'rgba(0,0,0,0.3)' # Semi-transparent background
    padding: 5px # Add padding
    border-radius: 5px # Rounded background

Sensor Styles

Customize sensor display and icons:

styles:
  sensors:
    color: red # Sensor text color
    font-size: 18px # Sensor text size
    '--user-sensor-icon-size': 24px # Sensor icon size (CSS variable)
    font-weight: bold # Bold sensor text
    opacity: 1 # Override theme opacity

Advanced Examples

Gaming Room Theme

type: custom:room-summary-card
area: gaming_room
area_name: 'Gaming Den'
styles:
  card:
    background: 'linear-gradient(135deg, #667eea 0%, #764ba2 100%)'
    border: '2px solid #00ff41'
    border-radius: 10px
    box-shadow: '0 0 20px rgba(0, 255, 65, 0.3)'
  title:
    color: '#00ff41'
    font-size: 2.5em
    font-weight: bold
    text-shadow: '0 0 10px rgba(0, 255, 65, 0.8)'
    text-transform: uppercase
  stats:
    color: '#00ff41'
    font-family: 'monospace'
    background: 'rgba(0, 0, 0, 0.5)'
    padding: 8px
    border-radius: 5px
  sensors:
    color: '#00ff41'
    font-family: 'monospace'
    '--user-sensor-icon-size': 20px

Minimalist Clean Theme

type: custom:room-summary-card
area: bedroom
styles:
  card:
    background: 'rgba(255, 255, 255, 0.1)'
    border: '1px solid rgba(255, 255, 255, 0.2)'
    border-radius: 20px
    backdrop-filter: 'blur(10px)'
  title:
    color: '#ffffff'
    font-size: 1.8em
    font-weight: 300
    letter-spacing: 2px
  stats:
    color: 'rgba(255, 255, 255, 0.7)'
    font-size: 0.9em
  sensors:
    color: 'rgba(255, 255, 255, 0.8)'
    '--user-sensor-icon-size': 16px

Retro Neon Theme

type: custom:room-summary-card
area: workshop
area_name: 'Workshop'
styles:
  card:
    background: '#000000'
    border: '2px solid #ff00ff'
    border-radius: 0
    box-shadow: '0 0 30px rgba(255, 0, 255, 0.5), inset 0 0 30px rgba(255, 0, 255, 0.1)'
  title:
    color: '#ff00ff'
    font-size: 2.2em
    font-family: 'monospace'
    text-shadow: '0 0 10px #ff00ff, 0 0 20px #ff00ff'
    text-transform: uppercase
  stats:
    color: '#00ffff'
    font-family: 'monospace'
    text-shadow: '0 0 5px #00ffff'
  sensors:
    color: '#ffff00'
    font-family: 'monospace'
    text-shadow: '0 0 5px #ffff00'
    '--user-sensor-icon-size': 18px

CSS Variables

Some styles use CSS variables that can be overridden:

Variable	Area	Description
--user-room-icon-size	card	Size of room icon
--user-entity-icon-size	entity_icon	Size of entity icons
--user-sensor-icon-size	sensors	Size of sensor icons
--user-entity-label-display	entity_icon	Control entity label display (set to none to hide)
--user-entity-state-font-size	entity_icon	Font size for entity state text (default: 0.6em)
--user-entity-state-color	entity_icon	Text color for entity state (default: var(--secondary-text-color))
--user-entity-state-opacity	entity_icon	Opacity for entity state text (default: 1)
--user-entity-state-font-weight	entity_icon	Font weight for entity state text (default: normal)
--user-background-image-overlay	card, entity_icon	Overlay gradient for card and icon background images (set to none to remove)
--user-grid-template-areas	card	Grid template areas for main layout (e.g., "'i e'" for horizontal layout)
--user-grid-template-columns	card	Grid template columns (e.g., 1fr 1.2fr for two columns)
--user-grid-template-rows	card	Grid template rows (e.g., 1fr for single row)
--user-grid-aspect-ratio	card	Aspect ratio of the grid container (e.g., 16/9, 1/1, auto to size to content)

Example:

styles:
  card:
    '--user-room-icon-size': 50% # Room icon size
  sensors:
    '--user-sensor-icon-size': 30px # Large sensor icons
  entity_icon:
    '--user-entity-icon-size': 28px # Entity icon size
    '--mdc-icon-size': 28px # Individual icon size
    '--user-entity-label-display': none # Hide all entity labels

Styling Entity State Display

When the show_state feature is enabled for an entity, you can customize the state display appearance using CSS variables:

entities:
  - entity_id: light.living_room
    features:
      - show_state
    styles:
      '--opacity-icon-fill-inactive': 0 # hide the bubble
      '--opacity-icon-fill-active': 0 # hide the bubble

      '--user-entity-state-font-size': 0.8em # Larger state text
      '--user-entity-state-color': '#ff6b6b' # Custom red color
      '--user-entity-state-opacity': 0.9 # Slightly transparent
      '--user-entity-state-font-weight': bold # Bold state text

You can also style all entity states globally:

styles:
  entity_icon:
    '--user-entity-state-font-size': 0.7em # Size for all entity states
    '--user-entity-state-color': '#4ecdc4' # Color for all entity states

Hiding Individual Entity Labels

You can hide labels for specific entities by setting the --user-entity-label-display CSS variable in the entity's styles:

entities:
  - entity_id: light.living_room
    styles:
      '--user-entity-label-display': none # Hide label for this specific entity
  - entity_id: switch.kitchen
    # This entity will still show its label

You can also hide labels conditionally based on state or threshold:

entities:
  - entity_id: sensor.temperature
    thresholds:
      - threshold: 75
        styles:
          '--user-entity-label-display': none # Hide label when temperature >= 75

Icon Opacity Preset

For easier icon visibility adjustment, you can use the icon_opacity_preset option instead of manually setting CSS variables:

type: custom:room-summary-card
area: living_room
icon_opacity_preset: high_visibility # Options: default, medium, high_visibility

This is equivalent to setting the opacity CSS variables but provides a simpler interface. See the main configuration documentation for details.

Home Assistant Variables

Note: The following Home Assistant CSS variables can be overridden, but these are not officially supported and may change with Home Assistant updates. Use at your own discretion.

Variable	Description
--background-color-card	Background color of the card
--icon-primary-color	Primary color for icons
--state-color-icon-theme	Theme color for state icons
--opacity-background-inactive	Opacity for inactive backgrounds
--opacity-background-active	Opacity for active backgrounds
--opacity-icon-inactive	Opacity for inactive icons
--opacity-icon-fill-inactive	Opacity for inactive icon fills
--opacity-icon-active	Opacity for active icons
--opacity-icon-fill-active	Opacity for active icon fills

Tip: Instead of manually setting --opacity-icon-* variables, consider using the icon_opacity_preset option for easier configuration.

Example:

styles:
  card:
    '--background-color-card': orange
    '--icon-primary-color': black
    '--state-color-icon-theme': '#FF5349'
    '--opacity-background-inactive': 0.2
    '--opacity-icon-inactive': 0.2
    '--opacity-icon-fill-inactive': 0.2
    '--opacity-background-active': 1
    '--opacity-icon-active': 1
    '--opacity-icon-fill-active': 1
  entity_icon:
    '--icon-primary-color': black
    '--state-color-icon-theme': '#FF5349'
    '--opacity-icon-inactive': 0.2
    '--opacity-icon-fill-inactive': 0.2
    '--opacity-icon-active': 1
    '--opacity-icon-fill-active': 1

Combining with Features

Custom styles work alongside feature flags:

type: custom:room-summary-card
area: kitchen
features:
  - hide_sensor_icons # Hide sensor icons but keep text
styles:
  sensors:
    font-size: 20px # Larger sensor text
    color: red # Red sensor text
  title:
    color: blue # Blue title

Icon-Only Sensor Display

type: custom:room-summary-card
area: bathroom
features:
  - hide_sensor_labels # Hide text labels, show icons only
sensor_layout: bottom
styles:
  sensors:
    gap: 20px # Space between icons

Tips and Best Practices

Color Values

• Use hex colors: #ff6b6b
• Use RGB: rgb(255, 107, 107)
• Use color names: red, blue, yellow
• Use theme variables: var(--primary-color)

Font Sizes

• Use relative units: 1.5em, 120%
• Use absolute units: 18px, 1.2rem
• Use CSS functions: clamp(1rem, 4vw, 2rem)

Backgrounds

• Solid colors: #ffffff
• Gradients: linear-gradient(45deg, #ff6b6b, #4ecdc4)
• Remove background: none or transparent
• Images: url('/local/image.jpg')

Responsive Design

Consider using responsive units:

styles:
  title:
    font-size: clamp(1rem, 5vw, 3rem) # Responsive font size

Theme Integration

Reference theme variables:

styles:
  title:
    color: var(--primary-text-color)
  card:
    border: '1px solid var(--divider-color)'

Troubleshooting

Styles not applying?

• Check YAML syntax and indentation
• Ensure style names are correct (card, title, stats, sensors)
• Try clearing browser cache

Colors not working?

• Verify color format (hex, rgb, color names)
• Check if theme overrides are conflicting

CSS variables not working?

• Ensure quotes around variable names: "--user-sensor-icon-size"
• Check if the variable is supported in that area
