Entity Color Configuration

Configure entity colors using card configuration or entity attributes for complete visual customization.

Configuration Methods

1. Card Configuration (Recommended)

Set colors directly in the card configuration:

entities:
  - entity_id: light.living_room
    on_color: yellow
    off_color: grey
    icon_color: '#FFD700'
  - entity_id: switch.garage_door
    on_color: green
    off_color: red

2. Entity Attributes

Set colors using Home Assistant's customize feature:

customize:
  light.living_room:
    on_color: yellow
    off_color: grey
    icon_color: '#FFD700'

Color Types

Theme Color Names

UI Minimalist: red, green, yellow, blue, purple, grey, pink, theme

Home Assistant: primary, accent, red, pink, purple, deep-purple, indigo, blue, light-blue, cyan, teal, green, light-green, lime, yellow, amber, orange, deep-orange, brown, light-grey, grey, dark-grey, blue-grey, black, white, disabled

Hex Colors

Use hex colors for precise control:

entities:
  - entity_id: media_player.plex
    icon_color: '#E5A00D' # Plex gold
  - entity_id: light.accent
    on_color: '#FF6B35' # Custom orange
    off_color: '#404040' # Dark grey

3. State-Based Colors and Icons

Configure colors, icons, and labels that match exact entity states (perfect for non-numeric sensors):

entities:
  - entity_id: sensor.washing_machine_state
    label: 'Washing Machine' # Fallback label
    states:
      - state: running
        icon_color: green
        icon: mdi:play
        label: "It's going" # Custom label when state is "running"
      - state: rinsing
        icon_color: orange
        icon: mdi:sync
        label: 'Splish Splash' # Custom label when state is "rinsing"
      - state: spinning
        icon_color: blue
        icon: mdi:rotate-3d-variant
        label: 'Weee' # Custom label when state is "spinning"
      - state: finished
        icon_color: purple
        icon: mdi:check-circle
        label: 'Empty Me!' # Custom label when state is "finished"

State matching is case-sensitive and works with any string state value:

entities:
  - entity_id: person.john
    label: 'John' # Fallback label
    states:
      - state: home
        icon_color: green
      - state: work
        icon_color: blue
      - state: away
        icon_color: grey

State matching operators:

You can use comparison operators to match states more flexibly. The default operator is eq (equal), but you can also use ne (not equal) to match all states except a specific value:

entities:
  - entity_id: sensor.roborock_dock
    states:
      - state: 'ok'
        operator: eq
        icon_color: green
      - state: 'ok'
        operator: ne
        icon_color: red  # All other states show red

This is particularly useful for entities with enum states where you want to match "all states except X" without listing every possible state explicitly.

State-based custom CSS styles:

📖 See State based CSS styling for entities for configuration details.

You can also apply custom CSS styles to entity icons based on their state:

entities:
  - entity_id: sensor.washing_machine_state
    states:
      - state: running
        icon_color: green
        icon: mdi:play
        styles:
          transform: scale(1.2)
          opacity: '1'
      - state: spinning
        icon_color: blue
        icon: mdi:rotate-3d-variant
        styles:
          animation: spin 2s linear infinite
      - state: finished
        icon_color: purple
        icon: mdi:check-circle
        styles:
          border: 2px solid var(--primary-color)
          border-radius: 50%
          box-shadow: 0 0 10px var(--primary-color)

The styles property accepts any CSS property-value pairs and applies them directly to the entity icon container.

4. Threshold-Based Colors and Icons

Configure dynamic colors, icons, and labels based on numeric sensor values:

entities:
  - entity_id: sensor.battery_level
    label: 'Battery' # Fallback label
    thresholds:
      - threshold: 80
        icon_color: green
        icon: mdi:battery-high
        label: 'High' # Custom label when battery >= 80%
      - threshold: 50
        icon_color: orange
        icon: mdi:battery-medium
        label: 'Medium' # Custom label when battery >= 50%
      - threshold: 20
        icon_color: red
        icon: mdi:battery-low
        label: 'Low' # Custom label when battery >= 20%
        styles:
          animation: pulse 2s ease-in-out infinite
      - threshold: 10
        icon_color: red
        icon: mdi:battery-alert
        label: 'Critical' # Custom label when battery >= 10%
        styles:
          animation: shake 1s ease-in-out infinite
          transform: scale(1.1)

Like state-based styles, threshold configurations also support the styles property for applying custom CSS when numeric thresholds are met.

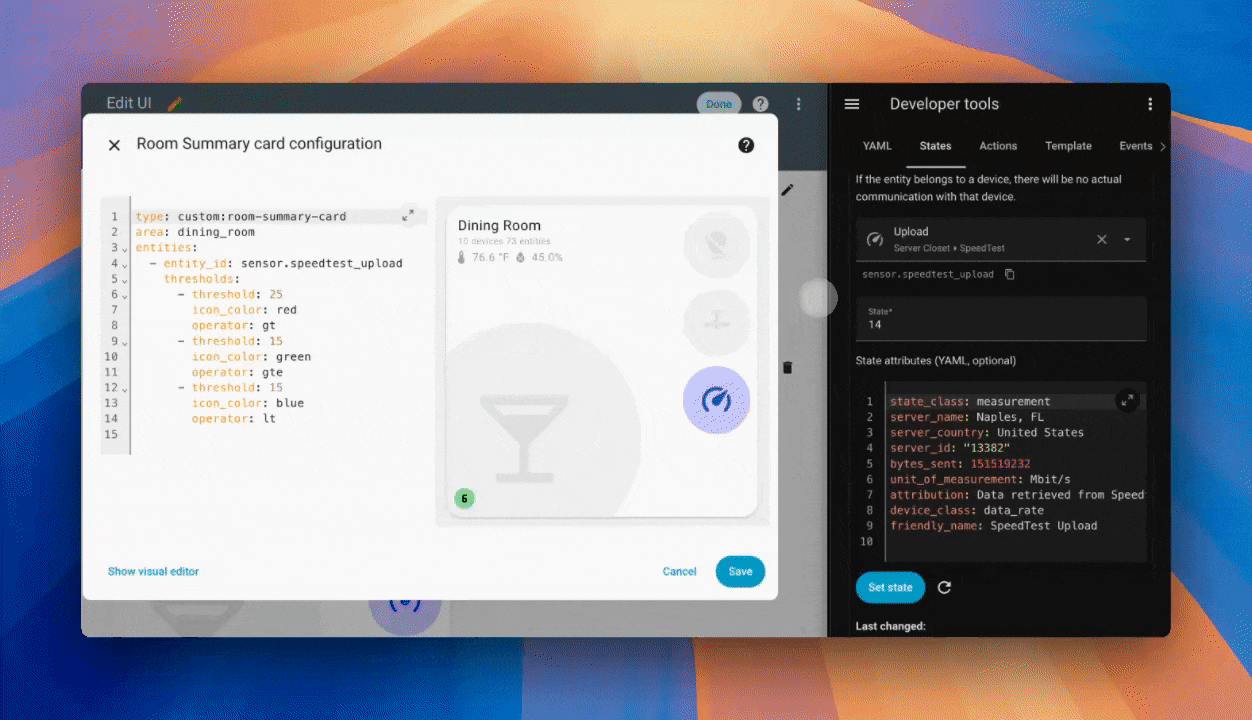

Advanced operators:

entities:
  - entity_id: sensor.temperature
    thresholds:
      - threshold: 25
        icon_color: red
        operator: gt # above 25°C
      - threshold: 15
        icon_color: green
        operator: gte # 15-25°C
      - threshold: 15
        icon_color: blue
        operator: lt # below 15°C

Supported operators: gt (>), gte (>=), lt (<), lte (<=), eq (=). Default is gte.

Note: Sensors also support thresholds! See Sensor Configuration for details on configuring thresholds for sensor entities.

Color Priority

Colors are applied in this priority order:

1. State-based colors (exact state matches)
2. Threshold colors (based on sensor values)
3. Card config (entity.on_color, entity.off_color, entity.icon_color)
4. Entity attributes (customize.yaml settings)
5. RGB colors (from entity's rgb_color attribute)
6. Theme colors (automatic theme-based colors)
7. Domain colors (default colors by entity domain)

Examples

Netflix Theme

entities:
  - entity_id: media_player.netflix
    icon: mdi:netflix
    icon_color: '#E50914'
    on_color: red
    off_color: black

Traffic Light System

entities:
  - entity_id: binary_sensor.system_ok
    icon: mdi:check-circle
    on_color: green
    off_color: red
  - entity_id: binary_sensor.warning
    icon: mdi:alert-circle
    on_color: amber
    off_color: grey

Custom Brand Colors

entities:
  - entity_id: light.philips_hue
    icon: mdi:lightbulb
    on_color: '#FF6B35' # Philips orange
    off_color: disabled
  - entity_id: switch.tp_link
    icon: mdi:power-socket
    on_color: '#1BA3E0' # TP-Link blue
    off_color: grey

Battery Level Indicators

entities:
  - entity_id: sensor.phone_battery
    icon: mdi:battery
    thresholds:
      - threshold: 80
        icon_color: green
        icon: mdi:battery-high
      - threshold: 50
        icon_color: orange
        icon: mdi:battery-medium
      - threshold: 30
        icon_color: amber
        icon: mdi:battery-low
        styles:
          opacity: '0.8'
      - threshold: 15
        icon_color: red
        icon: mdi:battery-alert
        styles:
          animation: pulse 2s ease-in-out infinite
      - threshold: 5
        icon_color: red
        icon: mdi:battery-alert-variant-outline
        styles:
          animation: shake 1s ease-in-out infinite
          filter: brightness(1.3)

Temperature Zones

entities:
  - entity_id: sensor.living_room_temperature
    icon: mdi:thermometer
    thresholds:
      - threshold: 24
        icon_color: red
        operator: gt # Too hot
        styles:
          filter: brightness(1.2)
          box-shadow: 0 0 10px rgba(255, 0, 0, 0.5)
      - threshold: 20
        icon_color: green
        operator: gte # Comfortable range
      - threshold: 18
        icon_color: blue
        operator: lt # Too cold
        styles:
          filter: hue-rotate(200deg)

Humidity Control

entities:
  - entity_id: sensor.bathroom_humidity
    icon: mdi:water-percent
    thresholds:
      - threshold: 70
        icon_color: red
        operator: gt # High humidity
      - threshold: 40
        icon_color: green
        operator: gte # Normal range
      - threshold: 30
        icon_color: orange
        operator: lt # Low humidity

State-Based Examples

Washing Machine States:

entities:
  - entity_id: sensor.washing_machine_state
    icon: mdi:washing-machine
    states:
      - state: running
        icon_color: green
        icon: mdi:play
        styles:
          transform: scale(1.15)
      - state: rinsing
        icon_color: orange
        icon: mdi:sync
      - state: spinning
        icon_color: blue
        icon: mdi:rotate-3d-variant
        styles:
          animation: spin 2s linear infinite
      - state: finished
        icon_color: purple
        icon: mdi:check-circle
        styles:
          border: 2px solid var(--primary-color)
          border-radius: 50%
      - state: idle
        icon_color: grey
        icon: mdi:pause
        styles:
          opacity: '0.6'

Person Location Tracking:

entities:
  - entity_id: person.john
    icon: mdi:account
    states:
      - state: home
        icon_color: green
        icon: mdi:home
      - state: work
        icon_color: blue
        icon: mdi:briefcase
      - state: gym
        icon_color: orange
        icon: mdi:dumbbell
      - state: vacation
        icon_color: purple
        icon: mdi:palm-tree

Device Status Monitoring:

entities:
  - entity_id: sensor.printer_status
    icon: mdi:printer
    states:
      - state: ready
        icon_color: green
        icon: mdi:check-circle
      - state: printing
        icon_color: blue
        icon: mdi:printer-3d
        styles:
          transform: scale(1.1)
      - state: error
        icon_color: red
        icon: mdi:alert-circle
        styles:
          animation: pulse 1s ease-in-out infinite
      - state: offline
        icon_color: grey
        icon: mdi:power-plug-off
        styles:
          opacity: '0.5'
          filter: grayscale(100%)

Combining States and Thresholds:

entities:
  # Non-numeric entity with states
  - entity_id: sensor.washing_machine
    states:
      - state: running
        icon_color: green

  # Numeric sensor with thresholds
  - entity_id: sensor.temperature
    thresholds:
      - threshold: 25
        icon_color: red
        operator: gt

Advanced Usage

Custom CSS Styles for State-Based Entities

The styles property in state configurations allows you to apply any CSS to entity icons. This is perfect for creating visual effects that respond to entity states:

entities:
  # Notification indicator with pulsing effect
  - entity_id: sensor.notification_count
    states:
      - state: '0'
        icon_color: grey
        icon: mdi:bell-outline
        styles:
          opacity: '0.5'
      - state: '1'
        icon_color: blue
        icon: mdi:bell-ring
        styles:
          animation: pulse 2s ease-in-out infinite
      - state: '5'
        icon_color: red
        icon: mdi:bell-ring
        styles:
          animation: shake 0.5s ease-in-out infinite
          transform: scale(1.2)

  # Door status with transitions
  - entity_id: binary_sensor.front_door
    states:
      - state: 'on'
        icon_color: red
        icon: mdi:door-open
        styles:
          transform: rotate(-15deg)
          transition: all 0.3s ease
      - state: 'off'
        icon_color: green
        icon: mdi:door-closed
        styles:
          transform: rotate(0deg)
          transition: all 0.3s ease

  # Motion sensor with glow effect
  - entity_id: binary_sensor.motion
    states:
      - state: 'on'
        icon_color: yellow
        icon: mdi:motion-sensor
        styles:
          box-shadow: 0 0 20px rgba(255, 215, 0, 0.8)
          filter: brightness(1.3)
      - state: 'off'
        icon_color: grey
        icon: mdi:motion-sensor-off
        styles:
          opacity: '0.6'

  # Alarm status with borders
  - entity_id: alarm_control_panel.home
    states:
      - state: armed_away
        icon_color: red
        icon: mdi:shield-lock
        styles:
          border: 3px solid red
          border-radius: 50%
      - state: armed_home
        icon_color: orange
        icon: mdi:shield-home
        styles:
          border: 3px solid orange
          border-radius: 50%
      - state: disarmed
        icon_color: green
        icon: mdi:shield-off
        styles:
          opacity: '0.7'

Common CSS properties for entity icons:

• transform: scale(), rotate(), translate()
• opacity: "0" to "1"
• filter: brightness(), grayscale(), blur(), hue-rotate()
• border: 2px solid red
• border-radius: 50% (circular), 10px (rounded)
• box-shadow: 0 0 10px rgba(255,0,0,0.5)
• animation: Custom animations (see below for defining keyframes)
• transition: all 0.3s ease (smooth state changes)

Note: Styles are applied to the icon container element, so layout properties like display, flex, and positioning work as expected.

Defining Custom Animations with Keyframes

You can define custom CSS animations using the special keyframes property in your styles object:

entities:
  - entity_id: binary_sensor.motion
    states:
      - state: 'on'
        icon_color: yellow
        icon: mdi:motion-sensor
        styles:
          keyframes: |-
            breathing {
              0%, 100% { transform: scale(1); opacity: 1; }
              50% { transform: scale(1.2); opacity: 0.7; }
            }
          animation: breathing 2s ease-in-out infinite
      - state: 'off'
        icon_color: grey
        icon: mdi:motion-sensor-off

  - entity_id: sensor.washing_machine_state
    states:
      - state: spinning
        icon_color: blue
        icon: mdi:rotate-3d-variant
        styles:
          keyframes: |-
            spin {
              from { transform: rotate(0deg); }
              to { transform: rotate(360deg); }
            }
          animation: spin 2s linear infinite

Multiple animations:

You can define multiple keyframe animations in a single state by listing them all in the keyframes property:

entities:
  - entity_id: alarm_control_panel.home
    states:
      - state: triggered
        icon_color: red
        icon: mdi:alarm-light
        styles:
          keyframes: |-
            flash {
              0%, 50%, 100% { opacity: 1; }
              25%, 75% { opacity: 0.3; }
            }
            shake {
              0%, 100% { transform: translateX(0); }
              25% { transform: translateX(-5px); }
              75% { transform: translateX(5px); }
            }
          animation: flash 0.5s infinite, shake 0.5s infinite

Tips for keyframe animations:

• Use the |- YAML multiline string syntax for readability
• Define the keyframes first, then reference them in the animation property
• Multiple animations can be comma-separated in the animation property
• Animation timing functions: linear, ease, ease-in, ease-out, ease-in-out
• Use infinite for continuous animations or specify a count (e.g., 3 for 3 times)

Custom CSS Styles for Threshold-Based Entities

Just like state-based entities, threshold configurations also support the styles property for applying custom CSS when numeric conditions are met:

entities:
  # Temperature sensor with visual feedback
  - entity_id: sensor.server_room_temperature
    icon: mdi:thermometer
    thresholds:
      - threshold: 30
        icon_color: red
        icon: mdi:fire
        operator: gt # Above 30°C - critical
        styles:
          animation: pulse 1s ease-in-out infinite
          box-shadow: 0 0 15px rgba(255, 0, 0, 0.8)
          transform: scale(1.15)
      - threshold: 25
        icon_color: orange
        operator: gte # 25-30°C - warning
        styles:
          filter: brightness(1.2)
      - threshold: 20
        icon_color: green
        operator: gte # 20-25°C - normal
      - threshold: 15
        icon_color: blue
        operator: lt # Below 15°C - cold
        styles:
          opacity: '0.8'
          filter: hue-rotate(180deg)

  # Battery with progressive urgency
  - entity_id: sensor.ups_battery
    icon: mdi:battery
    thresholds:
      - threshold: 50
        icon_color: green
        icon: mdi:battery-high
        operator: gte
      - threshold: 30
        icon_color: orange
        icon: mdi:battery-medium
        operator: gte
        styles:
          transform: scale(1.05)
      - threshold: 20
        icon_color: amber
        icon: mdi:battery-low
        operator: gte
        styles:
          animation: pulse 3s ease-in-out infinite
      - threshold: 10
        icon_color: red
        icon: mdi:battery-alert
        operator: gte
        styles:
          animation: pulse 1.5s ease-in-out infinite
          filter: brightness(1.2)
      - threshold: 10
        icon_color: red
        icon: mdi:battery-alert-variant-outline
        operator: lt # Critical - below 10%
        styles:
          animation: shake 0.5s ease-in-out infinite
          transform: scale(1.2)
          border: 2px solid red
          border-radius: 50%

  # Humidity with zone-based styling
  - entity_id: sensor.bathroom_humidity
    icon: mdi:water-percent
    thresholds:
      - threshold: 70
        icon_color: red
        operator: gt # Too humid
        styles:
          box-shadow: 0 0 10px rgba(0, 0, 255, 0.6)
          animation: pulse 2s ease-in-out infinite
      - threshold: 40
        icon_color: green
        operator: gte # Normal range
      - threshold: 30
        icon_color: orange
        operator: lt # Too dry
        styles:
          opacity: '0.7'
          filter: grayscale(30%)

  # Signal strength indicator
  - entity_id: sensor.wifi_signal
    icon: mdi:wifi
    thresholds:
      - threshold: -50
        icon_color: green
        icon: mdi:wifi-strength-4
        operator: gte # Excellent
        styles:
          filter: brightness(1.2)
      - threshold: -60
        icon_color: green
        icon: mdi:wifi-strength-3
        operator: gte # Good
      - threshold: -70
        icon_color: orange
        icon: mdi:wifi-strength-2
        operator: gte # Fair
        styles:
          opacity: '0.8'
      - threshold: -70
        icon_color: red
        icon: mdi:wifi-strength-1
        operator: lt # Poor
        styles:
          animation: pulse 2s ease-in-out infinite
          opacity: '0.6'

Combining thresholds with states:

You can use both threshold and state configurations on the same entity. State-based matches take priority over threshold-based matches:

entities:
  - entity_id: sensor.smart_sensor
    thresholds:
      # Numeric thresholds for normal operation
      - threshold: 25
        icon_color: red
        operator: gt
      - threshold: 15
        icon_color: green
        operator: gte
    states:
      # State-based overrides for special conditions
      - state: 'unavailable'
        icon_color: grey
        icon: mdi:alert-circle
        styles:
          opacity: '0.5'
          filter: grayscale(100%)
      - state: 'unknown'
        icon_color: orange
        icon: mdi:help-circle
        styles:
          animation: pulse 2s ease-in-out infinite

Mixed Configuration

Combine card config and attributes for maximum flexibility:

# Card configuration
entities:
  - entity_id: light.accent
    on_color: amber # Override in card
    # off_color from attributes

# customize.yaml
customize:
  light.accent:
    off_color: disabled # Fallback in attributes
    icon_color: yellow # Default icon color

RGB Light Integration

RGB lights automatically use their color when no overrides are set:

entities:
  - entity_id: light.color_bulb
    # Automatically uses rgb_color attribute
  - entity_id: light.mood_light
    on_color: purple # Override RGB with theme color

For more examples, see Advanced Examples.
