Climate Threshold Configuration¶

Configure climate-based border styling thresholds and mold detection:

Climate Borders

Note: This covers climate thresholds for card styling. For entity threshold colors based on individual sensor values, see Entity Color Configuration.

thresholds:
  temperature:
    - value: 75 # Temperature threshold in current unit or entity (optional - defaults to 80°F)
      operator: gt # Comparison operator (optional - default: gt)
      # entity_id is optional - if omitted, uses averaged temperature sensor
  humidity:
    - value: 55 # Humidity threshold (optional - defaults to 60%)
      operator: gt # Comparison operator (optional - default: gt)
      # entity_id is optional - if omitted, uses averaged humidity sensor
  mold: 50 # Mold threshold as percentage

How It Works:

Temperature sensors with values meeting the threshold condition trigger red borders (by default)
Humidity sensors with values meeting the threshold condition trigger blue borders (by default)
Mold sensors with values at or above the threshold display an animated indicator near problem entities (bottom left)
Thresholds respect the current unit of measurement (°F, °C, %)
Can be disabled with the skip_climate_styles feature flag
Multiple threshold entries can be configured for each type, allowing different sensors to have different thresholds
Each threshold entry can specify the threshold value (value), which entity to check (entity_id), the comparison operator (operator), and a custom border color (color) - all fields are optional
If entity_id is omitted, the card uses the averaged sensor value for that device class (temperature or humidity)
If value is omitted, defaults are used: 80°F (26.7°C) for temperature, 60% for humidity
If operator is omitted, defaults to gt (greater than)
If color is omitted, default colors are used: red (var(--error-color)) for temperature, blue (var(--info-color)) for humidity
For advanced cases an entity can be configured as the one to trip the threshold for value.

Custom Border Colors¶

You can customize the border color when a threshold is triggered by adding a color property to any threshold entry:

thresholds:
  temperature:
    - value: 70
      operator: lt
      color: blue # Custom blue border when temp < 70°F
    - value: 85
      operator: gt
      color: red # Custom red border when temp > 85°F
  humidity:
    - value: 50
      operator: lt
      color: orange # Custom orange border when humidity < 50%

Color Format:

Accepts any valid CSS color value (hex, rgb, named colors, CSS variables)
Examples: blue, #FF5733, rgb(255, 87, 51), var(--warning-color)
If omitted, defaults to red for temperature (var(--error-color)) and blue for humidity (var(--info-color))

Use Cases:

Different severity levels: Use different colors for different threshold ranges (e.g., yellow for warning, red for critical)
Heating vs cooling: Use blue for cold temperatures, red for hot temperatures
Custom branding: Match your dashboard theme with custom colors

Comparison Operators¶

You can specify how the sensor values are compared to the threshold using comparison operators:

gt (Greater than): value > threshold - Default for both temperature and humidity
gte (Greater than or equal): value >= threshold
lt (Less than): value < threshold - Useful for heating scenarios
lte (Less than or equal): value <= threshold
eq (Equal): value === threshold - Exact match

Use Cases:

Cooling scenarios (default): Use gt to detect when temperature is above threshold
Heating scenarios: Use lt to detect when temperature is below threshold
Medical conditions: Use lt for humidity to detect when it's too low
Exact monitoring: Use eq to detect specific values

Mold Indicator¶

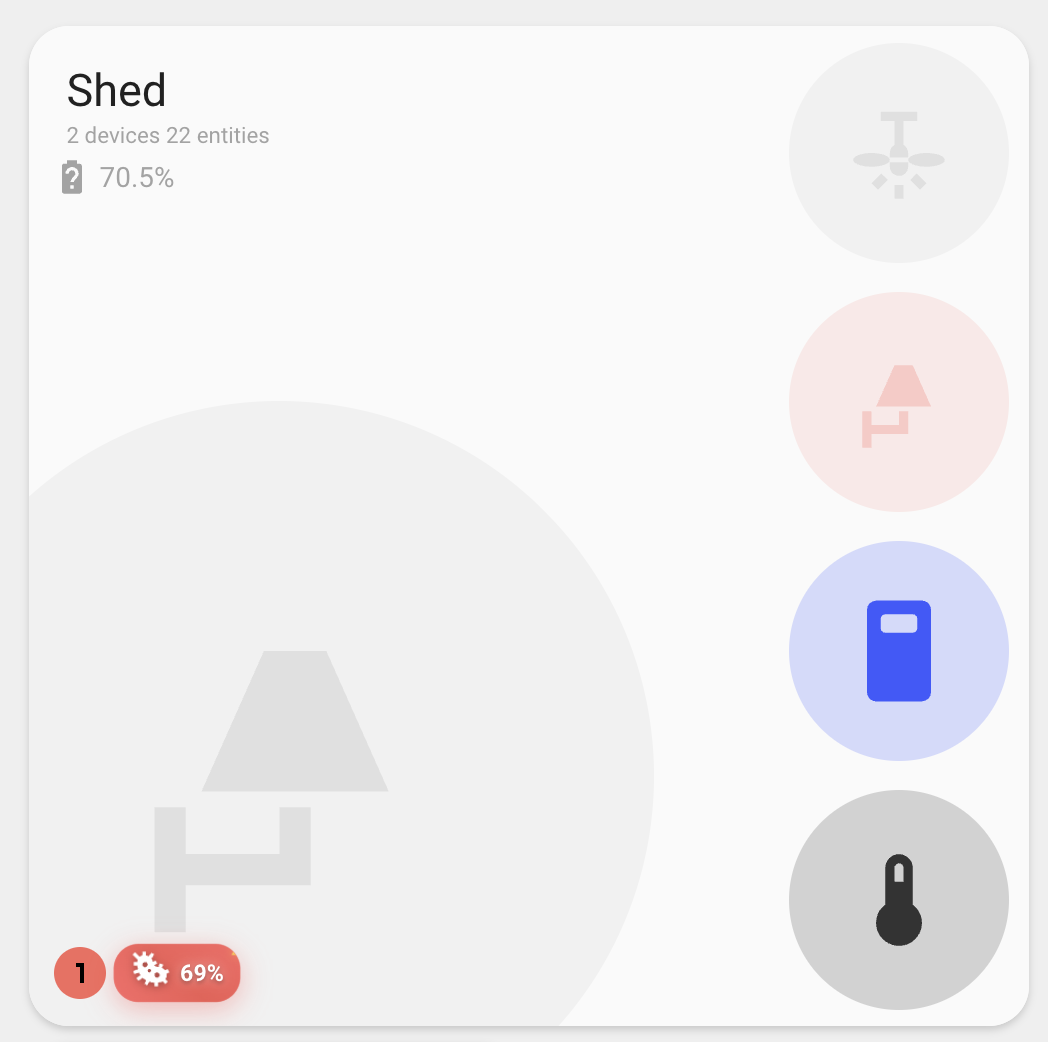

The mold indicator provides a prominent visual warning when mold levels exceed your configured threshold:

Location: Appears in the bottom left area near problem entities
Visual Design: Animated red gradient background with pulsing effects
Components: Shows the mold sensor icon and current value
Animations: Includes pulsing, bouncing, and glowing effects to draw attention
Warning Symbol: Displays a flashing warning bug mold symbol for additional emphasis
Hover Effects: Scales up and intensifies animations on hover

Moldy

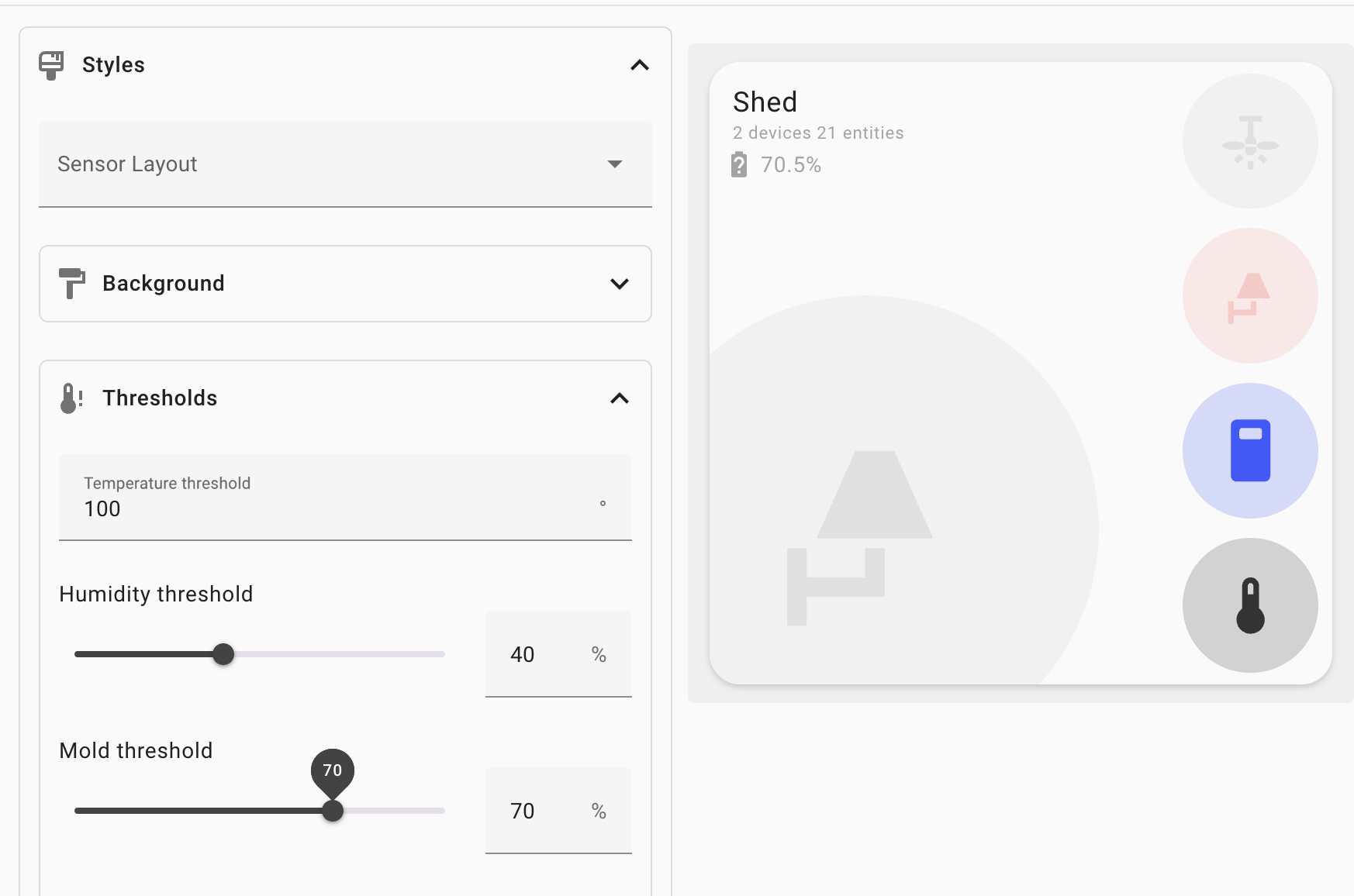

Mold Sensor Requirements:

Must be a sensor entity with a numeric state value
Should represent mold level as a percentage (0-100)
Will only display when the sensor value is at or above the configured threshold
If no threshold is configured, the indicator will always show when a mold sensor is present

Moldy

Examples:

# Minimal configuration - uses all defaults (80°F for temp, 60% for humidity, gt operator)
#thresholds:

# Simple threshold - uses averaged sensor (entity_id not needed)
# Celsius threshold
thresholds:
  temperature:
    - value: 24  # 24°C

# Fahrenheit threshold
thresholds:
  temperature:
    - value: 75  # 75°F

# Custom humidity threshold
thresholds:
  humidity:
    - value: 50  # 50%

# All thresholds together (simple form)
thresholds:
  temperature:
    - value: 78
  humidity:
    - value: 65
  mold: 50

# Specific entity threshold - when you need to check a particular sensor
thresholds:
  temperature:
    - entity_id: sensor.living_room_temp  # Check this specific sensor
      value: 75
      operator: gt

# Dynamic threshold values from entities
thresholds:
  temperature:
    - value: sensor.main_temperature # Threshold value read from entity
      # Uses averaged temperature sensor by default
  humidity:
    - value: sensor.main_humidity # Threshold value read from entity
      # Uses averaged humidity sensor by default

# Multiple threshold entries for different sensors
thresholds:
  temperature:
    - entity_id: sensor.living_room_temp
      value: 75
      operator: gt
    - entity_id: sensor.bedroom_temp
      value: 70
      operator: gt
  humidity:
    - entity_id: sensor.living_room_humidity
      value: 55
      operator: gt

# Heating scenario - detect when temperature is below threshold
thresholds:
  temperature:
    - value: 68
      operator: lt # Trigger when temperature < 68°F

# Medical condition - detect when humidity is too low
thresholds:
  humidity:
    - value: 30
      operator: lt # Trigger when humidity < 30%

# Combined heating and low humidity detection
thresholds:
  temperature:
    - value: 70
      operator: lt # Below 70°F
  humidity:
    - value: 35
      operator: lt # Below 35%

# Exact temperature monitoring
thresholds:
  temperature:
    - value: 72
      operator: eq # Trigger only when exactly 72°F

# Mix of averaged and specific sensors
thresholds:
  temperature:
    - value: 75  # Uses averaged temperature sensor
      operator: gt
    - entity_id: sensor.bedroom_temp  # Also check specific sensor
      value: 70
      operator: gt

# Custom colors for different threshold ranges
thresholds:
  temperature:
    - value: 70
      operator: lt
      color: blue  # Blue border when temp < 70°F (too cold)
    - value: 85
      operator: gt
      color: red  # Red border when temp > 85°F (too hot)
  humidity:
    - value: 30
      operator: lt
      color: orange  # Orange border when humidity < 30% (too dry)
    - value: 70
      operator: gt
      color: purple  # Purple border when humidity > 70% (too humid)

# Basement example with custom colors
thresholds:
  temperature:
    - value: 70
      operator: lt
      color: blue  # Blue alarm when basement is too cold
    - value: 85
      operator: gt
      color: red  # Red alarm when basement is too hot

Default values: 80°F (26.7°C) for temperature, 60% for humidity, no default for mold (indicator shows whenever mold sensor is present)

Field Reference:

Field	Type	Default	Description
`entity_id`	string	Averaged sensor	Entity ID to check for this threshold. If omitted, uses averaged sensor value
`value`	number \| string	80°F (temp), 60% (humidity)	Threshold value (number) or entity ID (string) to lookup threshold value
`operator`	string	`gt`	Comparison operator: `gt`, `gte`, `lt`, `lte`, `eq`
`color`	string	Red (temp), Blue (humidity)	Custom border color when threshold is triggered. Accepts any CSS color value
